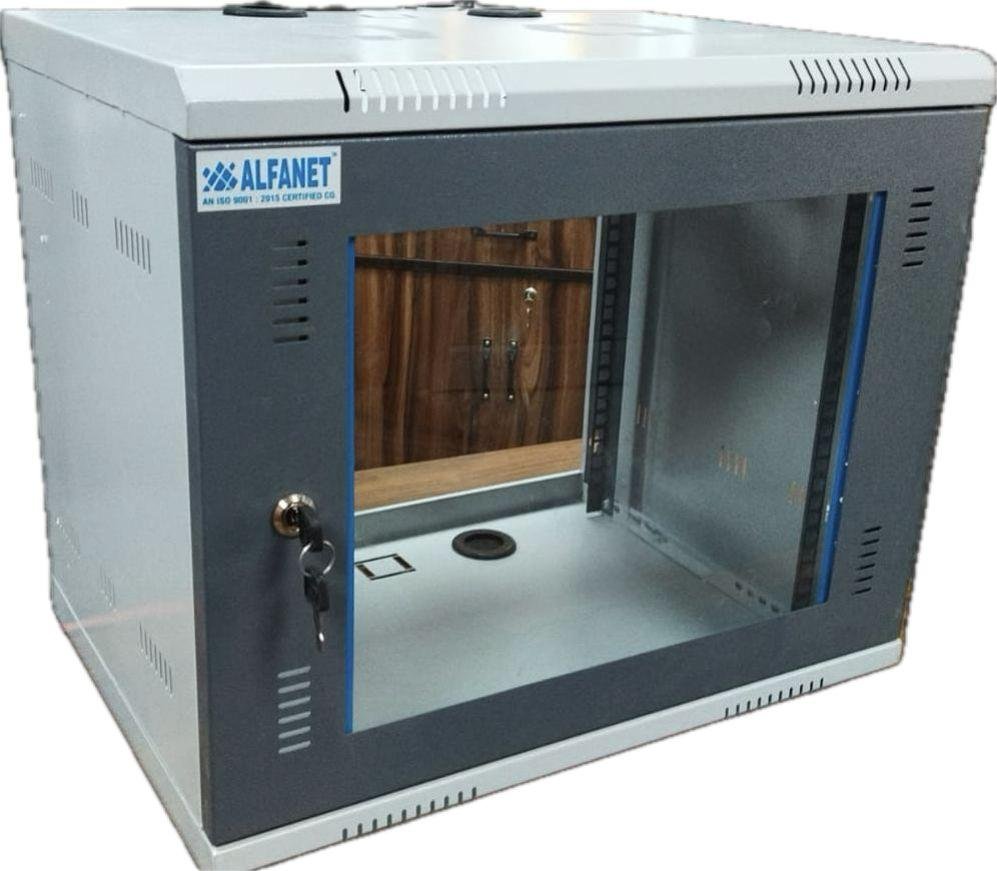

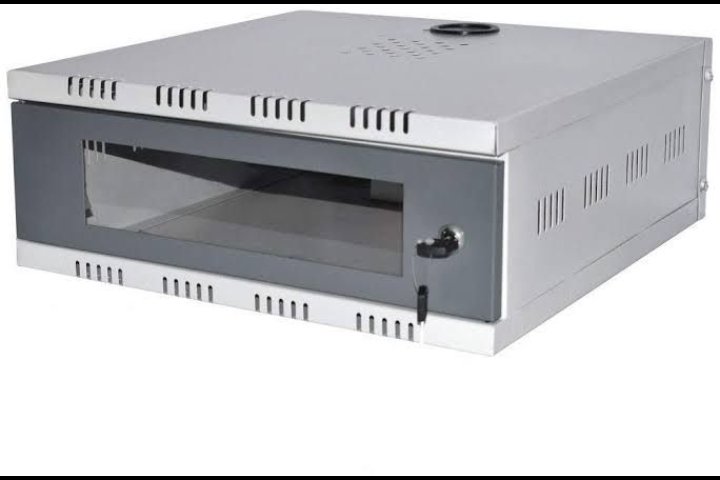

Wall Mount Racks

Wall Mount Racks

For small etworking, telecom, Audio/Video and CCTV Security Systems
Made of high quality metal sheet .8mm
1.2mm mounting angle with clear "U" making
Front with toughened glass door & lock
Cable entry provision at top & bottom with rubber protection at edges
Cooling fan fitting option at top
Sufficient perforation provided at side & front for ventilation
Finished with 7 process pre-treated powder coating
Attractive color design - RAL -7035 Grey / Black
Wall mounting hardware provided with rack

Wall Mount Racks Available in below Sizes: -

S.N	PART CODE	SIZE	DIMENSIONS (WDH)
1	ANR-W2350	2U	550 X 350 X 140
2	ANR-W4400	4U	550 X 400 X 230
3	ANR-W6400	6U	550 X 400 X 340
4	ANR-W6500	6U	550 X 500 X 340
5	ANR-W6600	6U	550 X 600 X 340
6	ANR-W9400	9U	550 X 400 X 475
7	ANR-W9500	9U	550 X 500 X 475
8	ANR-W9600	9U	550 X 600 X 475
9	ANR-W12400	12U	550 X 400 X 610
10	ANR-W12500	12U	550 X 500 X 610
11	ANR-W12600	12U	550 X 600 X 610
12	ANR-W15400	15U	550 X 400 X 745
13	ANR-W15500	15U	550 X 500 X 745
14	ANR-W15600	15U	550 X 600 X 745

Optional Accessories:
